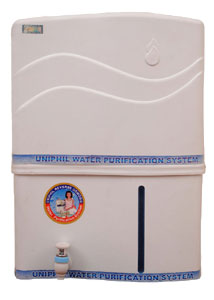

UNIPHIL GRAND WW RO


  MODEL UNIPHIL GRAND WW RO
  Dimensions 300 X 260 X 415 mm (WDH)
  Storage Capacity 8 liters
  Production Capacity 10-15 Liters/hour
  Power Rating 30 watts
  % Reduction in TDS 90-95 Approx.
  Weight 10 kg.
  Voltage 130-230 V, AC, 50 Hz.
  Solid in Input Water 2000 Max.
  Max. Duty Cycle 2000 Max.
  Stages of purification 5 Stages.
  Filter Cartridge Pre filter, Sediment Filter,
Pre Carbon, RO Membrane,
Post Carbon.

  • Fitted with quality imported components.
  • Product water is highly safe.
  • Easy to operate and maintain.
  • 10 liters capacity tank for constant water supply.
  • Low power consumption with noiseless operation.
  • Imparts healthy and decorative look to your kitchen.
  • Auto start and stop.
  • ABS body for shock proof operation.
  • Automatic switch to ensure that system is no damaged in case of no water supply or low pressure supply.
  • One year warranty against all manufacturing defects.
  • Effective after sales services with the same quality of replaceable components.


 Contamination

Caused Disease

RO System

UV purifier

Sodium

Heart Disease

yes

No

Calcium

Kidney Stone

Yes

No

Magnesium

Kidney Stone

Yes

No

Copper

Indigestion

Yes

No

Mercury

Pain

Yes

No

Nitrate

Dysentery

Yes

No

Bacteria

Bacterial Disease

Yes

Yes

Fluoride

Fluoresces

Yes

No

Arsenic

Poisoning

Yes

No



 Material

% Removed

Material

% Removed

Bacteria

100%

Barium

97%

Cryptosoridium

100%

Silver

85%

T.D.S.

95%

Silicate

96%

Sodium

92%

Sulphate

97%

Copper

97%

Strontium

97%

Fluoride

90%

Bicarbonate

94%

Lead

97%

Radium

97%

Potassium

92%

Insecticides

97%

Detergents

97%

Magnesium

97%

Chromate

92%

Herbicides

97%

Nickel

97%

_

97%



1st Stage SEDIMENT FILTER 5 micron:
Purpose: To remove physical impurities such as suspended solids, dirt, Iron, and reduce silt density index which can foul the membranes.

2nd Stage ANTI SCALENTT BALLS:
Purpose: It remove the property of scaling of water over RO Membrane.

3rd Stage GRANULAR ACTIVATED CARBON CHAMBER:
Purpose: To remove the Chemical impurities of water.

4th stage IRON REMOVER:
Purpose: it removes the iron from the water.

5th Stage MAGNET SOFTNER:
Purpose: Water passes through it and removes the hardness of water and provide the soft water.

6th stage PRE CARBON FILTER:
Purpose: To remove color, odor, taste, smell etc from row water.

7th stage 1 MICRON UNIQUE SEDIMENT FILTER:

Purpose: To remove the fine particles up to 1 micron and reduce silt density level to acceptable level & improve the life of membrane.

8th stage RO MEMBRANE:
Purpose: To remove the major part of TDS up to 99% by Reverse Osmosis Membrane of .0001 micron arrange and designed to give adequate flow and recovery it removes all germs & bacteria also removes all harmful metal from the water provides the safe and soft water to drink.

9th stage ph BOSTER:
Purpose: To maintain the ph. And maintain the taste of water.

10th stage SILVER CARBON:
Purpose: For improve the taste of water and stop the re-growth of germs.

11th stage FLUORIDE REMOVER:
Purpose: It removes the fluoride from the water and increase the taste of water.
