MODEL |

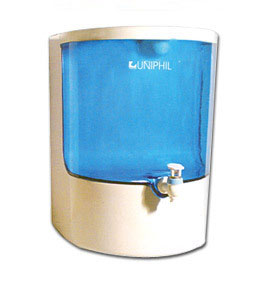

UNIPHIL HOT & COLD RO |
| |
Dimensions |
300 X 260 X 415 mm (WDH) |
| |
Storage Capacity |
8 liters |
| |
Production Capacity |
10-15 Liters/hour |
| |
Power Rating |
30 watts |
| |
% Reduction in TDS |
90-95 Approx. |
| |
Weight |
10 kg. |
| |
Voltage |
130-230 V, AC, 50 Hz. |
| |
Solid in Input Water |
2000 Max. |
| |
Max. Duty Cycle |
2000 Max. |
| |
Stages of purification |
5 Stages. |
| |
Filter Cartridge |
Pre filter, Sediment Filter,
Pre Carbon, RO Membrane,
Post Carbon. |
|
|
- Fitted with quality imported components.
- Product water is highly safe.
- Easy to operate and maintain.
- 10 liters capacity tank for constant water supply.
- Low power consumption with noiseless operation.
- Imparts healthy and decorative look to your kitchen.
- Auto start and stop.
- ABS body for shock proof operation.
- Automatic switch to ensure that system is no damaged in case of no water supply or low pressure supply.
- One year warranty against all manufacturing defects.
- Effective after sales services with the same quality of replaceable components.
Contamination |
Caused Disease |
RO System |
UV purifier |
Sodium |
Heart Disease |
yes |
No |
Calcium |
Kidney Stone |
Yes |
No |
Magnesium |
Kidney Stone |
Yes |
No |
Copper |
Indigestion |
Yes |
No |
Mercury |
Pain |
Yes |
No |
Nitrate |
Dysentery |
Yes |
No |
Bacteria |
Bacterial Disease |
Yes |
Yes |
Fluoride |
Fluoresces |
Yes |
No |
Arsenic |
Poisoning |
Yes |
No |
Material |
% Removed |
Material |
% Removed |
Bacteria |
100% |
Barium |
97% |
Cryptosoridium |
100% |
Silver |
85% |
T.D.S. |
95% |
Silicate |
96% |
Sodium |
92% |
Sulphate |
97% |
Copper |
97% |
Strontium |
97% |
Fluoride |
90% |
Bicarbonate |
94% |
Lead |
97% |
Radium |
97% |
Potassium |
92% |
Insecticides |
97% |
Detergents |
97% |
Magnesium |
97% |
Chromate |
92% |
Herbicides |
97% |
Nickel |
97% |
_ |
97% |
1st Stage SEDIMENT FILTER 5 micron:
Purpose: To remove physical impurities such as suspended solids, dirt, Iron, and reduce silt density index which can foul the membranes.
2nd Stage ANTI SCALENTT BALLS:
Purpose: It remove the property of scaling of water over RO Membrane.
3rd Stage GRANULAR ACTIVATED CARBON CHAMBER:
Purpose: To remove the Chemical impurities of water.
4th stage IRON REMOVER:
Purpose: it removes the iron from the water.
5th Stage MAGNET SOFTNER:
Purpose: Water passes through it and removes the hardness of water and provide the soft water.
6th stage PRE CARBON FILTER:
Purpose: To remove color, odor, taste, smell etc from row water.
7th stage 1 MICRON UNIQUE SEDIMENT FILTER:
Purpose: To remove the fine particles up to 1 micron and reduce silt density level to acceptable level & improve the life of membrane.
8th stage RO MEMBRANE:
Purpose: To remove the major part of TDS up to 99% by Reverse Osmosis Membrane of .0001 micron arrange and designed to give adequate flow and recovery it removes all germs & bacteria also removes all harmful metal from the water provides the safe and soft water to drink.
9th stage ph BOSTER:
Purpose: To maintain the ph. And maintain the taste of water.
10th stage SILVER CARBON:
Purpose: For improve the taste of water and stop the re-growth of germs.
11th stage FLUORIDE REMOVER:
Purpose: It removes the fluoride from the water and increase the taste of water.
